View our material charts to find the suitable filament for your application.
For more detailed technical data visit our webapp：Full Technical Data Comparison

Dry state

Wet state

Printability

The printability of the material is defined by its ease of use and equipment required.

Rigidity

The rigidity of the material is defined by its modulus:Young’s modulus
ISO 527, GB/T 1040.

Heat Resistance

The heat resistance of the material is defined by its VST: Vicat Softening temperature
ISO 306 GB/T 1633.

Weather Resistance

The weather resistance of the material is defined by its UV resistance. The data provided is currently an estimation.

Durability

The durability of the material is defined by its resistance to impact:Charpy impact strength
ISO 179, GB/T 1043.A

*PolyMide™ PA6-CF and PolyMide™ PA6-GF heat resistance are defined by their HDT: Heat Deflection Temperature
ISO 75 0.45 MPa.

Specialty Series

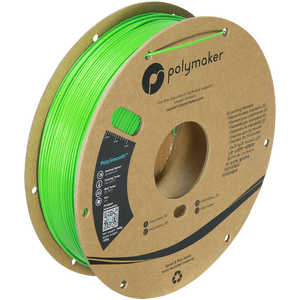

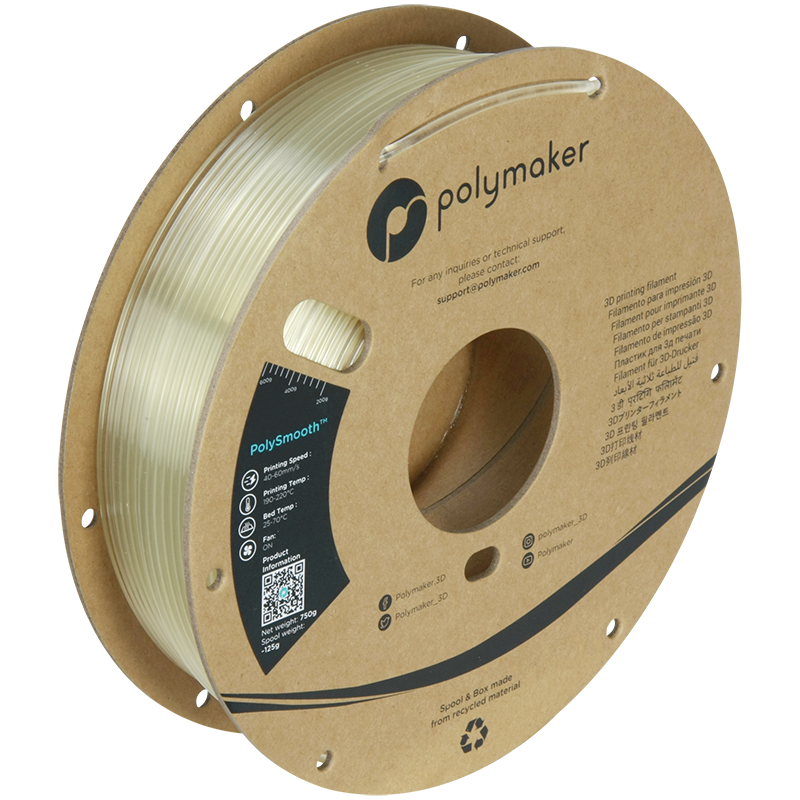

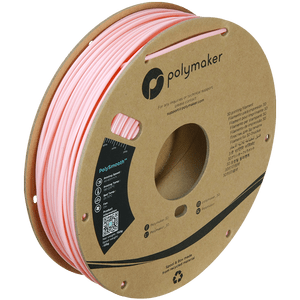

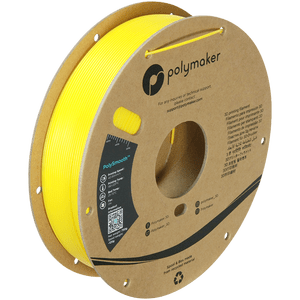

PolySmooth™

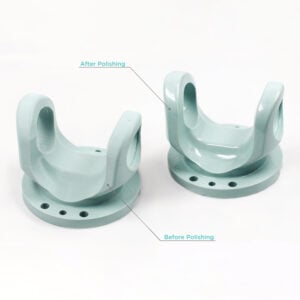

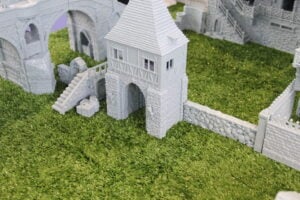

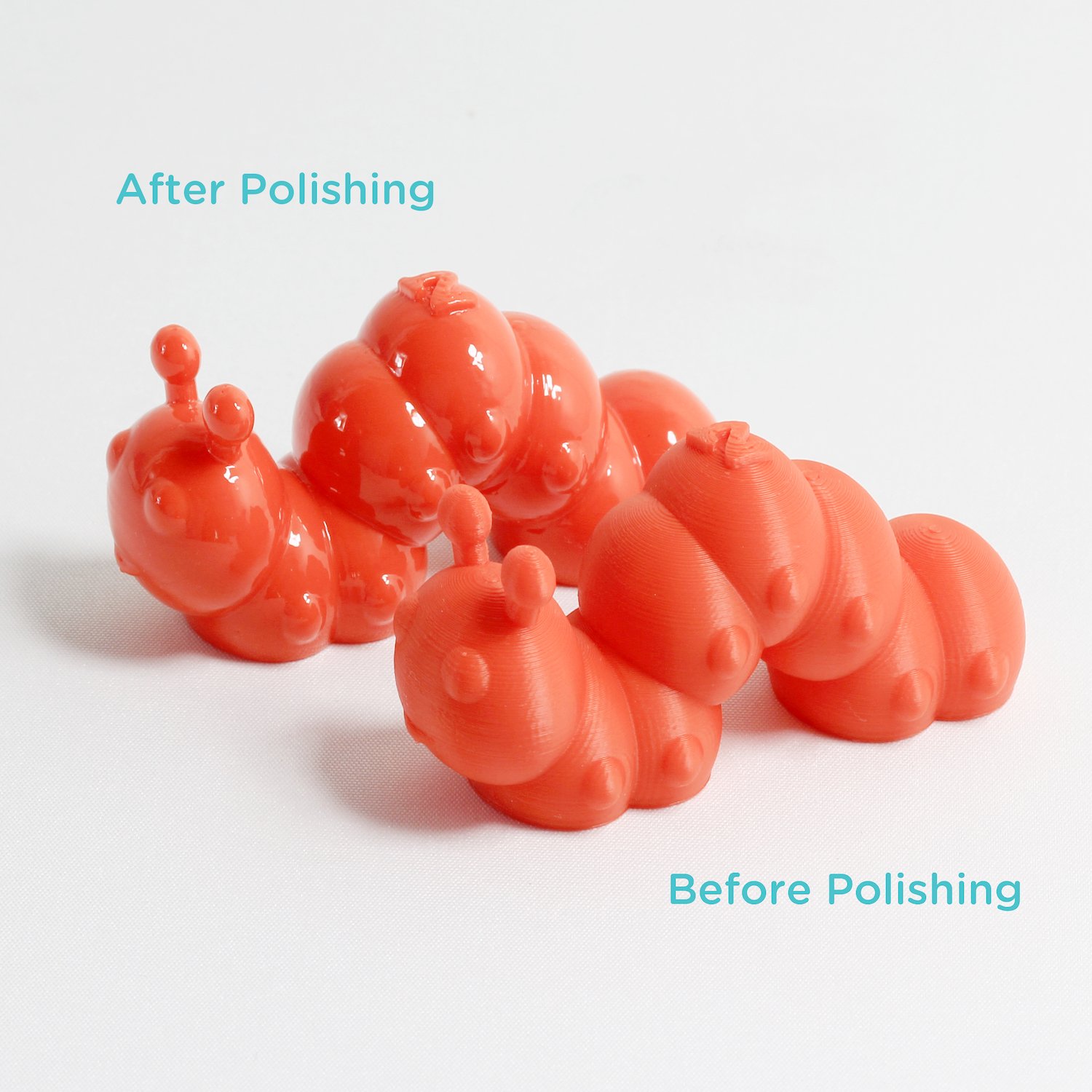

PolySmooth™ is a unique, easy-to-print filament designed for hands-free post processing with isopropyl alcohol or ethanol. The surface can be smoothed to remove all the layer lines leaving a smooth, glossy, homogenous surface. Figurines with small details or product prototypes that require an injection moulded finish can all benefit from Layer Free™ Technology.

Safe and easy to post process

Excellent printability

Balanced mechanical properties

Find a Reseller

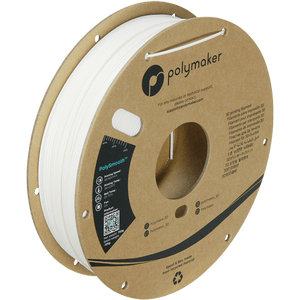

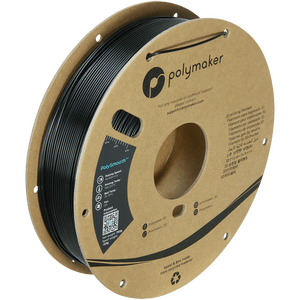

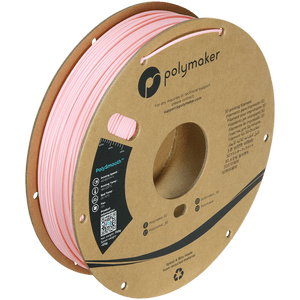

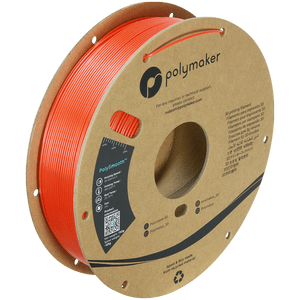

Color Range

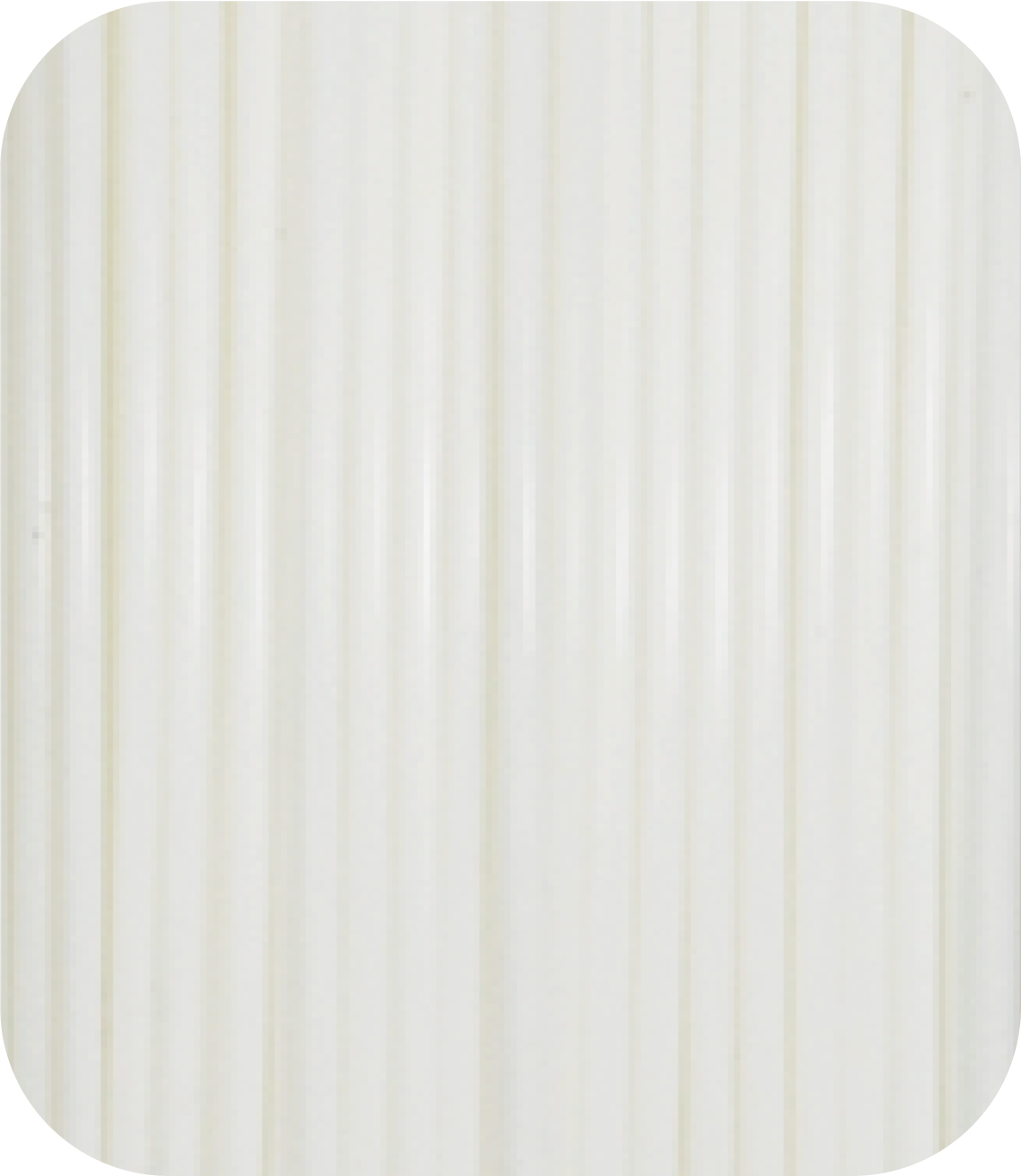

Regular

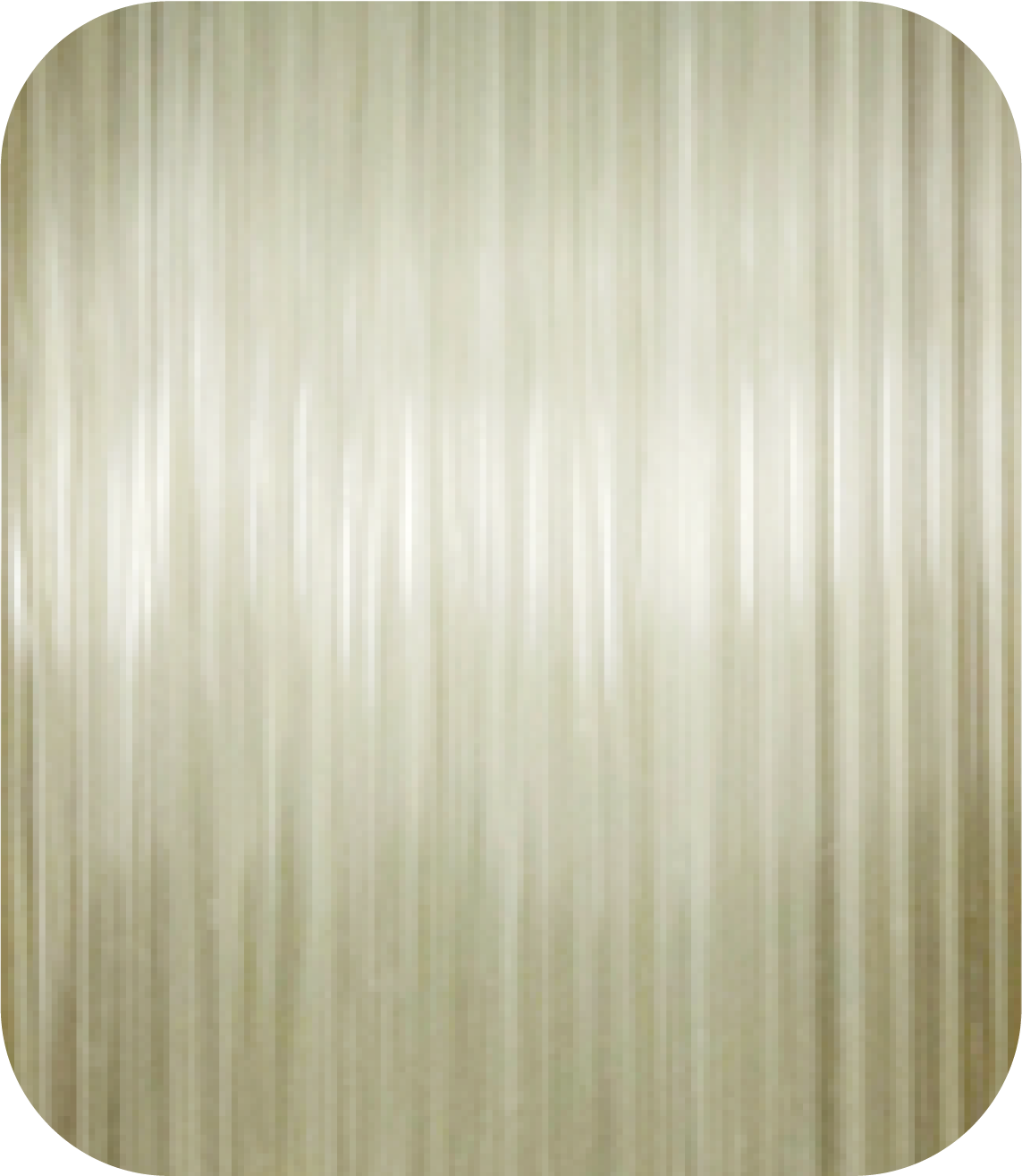

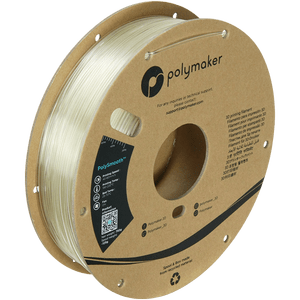

Translucent

Inquiry

Product Availability

Product Information Sheet

Safety Data Sheet

Technical Data Sheet

File Downloads

Product Video

FAQ

Is PolySmooth™ a PLA based material?

No, although PolySmooth™ prints with similar settings as PLA, PolySmooth™ is PVB based.
PVB is more hygroscopic than PLA so it requires a dry box however it can be post processed very easily with IPA for smoother surface finish.

What storage method is recommended for PolySmooth™ when it is not in use?

For optimal storage, it is recommended to place the PolySmooth™ filament in a sealed, dry environment such as an aluminum bag or a PolyBox™.

750g

Specifications

PolySmooth™

print
settings

Printing Temperature:

190˚C - 220˚C

Bed Temperature:

25˚C - 70˚C

Printing Speed:

30mm/s -60mm/s

Fan:

Direct Drive Retraction Distance:

3mm

Direct Drive Retraction Speed:

40mm/s

Indirect Drive Retraction Distance:

1mm

Indirect Drive Retraction Speed:

20mm

Recommended Support Materials:

PolyDissolve™ S1/PolySupport™

Dry Settings:

55˚C for 12h

(Only if the material has absorbed moisture)

MEchanical Properties

(XY)Young's Modulus (MPa):

2092.7 ± 652.3 MPa

ISO 527, GB/T 1040

(Z)Young's Modulus (MPa):

1614.3 ± 79.5 MPa

ISO 527, GB/T 1040

(XY)Tensile Strength:

44.1 ± 0.8 MPa

ISO 527, GB/T 1040

(Z)Tensile Strength:

18.4 ± 1.2 MPa

ISO 527, GB/T 1040

(XY)Elongation at break(%):

3.4 ± 0.4 %

ISO 527, GB/T 1040

(Z)Elongation at break(%)

1.3 ± 0.1 %

ISO 527, GB/T 1040

(XY)Bending Modulus (MPa):

2062.8 ± 200.8 MPa

ISO 178, GB/T 9341

(XY)Bending Strength (MPa):

76.2 ± 5.7 MPa

ISO 178, GB/T 9341

(XY)Charpy Impact Strength:

9.2 ± 0.7 kJ/m2

ISO 179, GB/T 1043

Thermal Properties

Glass Transition Temperature:

70.0 °C

DSC, 10°C/min

Melting Temperature:

70.0 °C

DSC, 10°C/min

Heat Deflection Temperature
(1.8MPa):

66.3 °C

ISO 75 1.8MPa

Heat Deflection Temperature
(0.45MPa)

68.0 °C

ISO 75 0.45MPa

Vicat Softening Temperature:

70.4 °C

ISO 306, GB/T 1633

Material Properties

Technology

Layer Free technology

PolySmooth™
