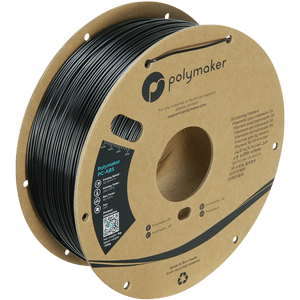

Polymaker PC-ABS

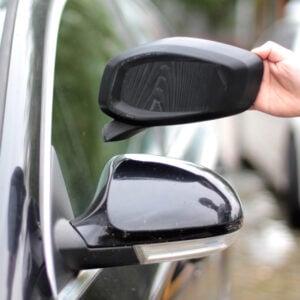

Polymakerâ„¢ PC-ABS is a PC/ABS polymer blend which offers excellent toughness and heat resistance while displaying a good surface finish and good compatibility with metal electroplating. Polymakerâ„¢ PC-ABS characteristics make it ideal for automotive interior parts such as dashboard, door handles or instrument panels.

Excellent toughness and heat resistant
Good surface finish
Compatible with metal plating

Color Range

Regular
SKU
PC04001
EAN
6938936710899
Color
Black
Diameter
1.75mm
Weight
1.0kg
Product Information Sheet
Technical Data Sheet

FAQ

What is the heat resistance of this filament, like the heat deflection temperature?

Polymaker™ PC-ABS is a very excellent heat-resistant product, the Vicat temperature is about 140℃, the heat deflection temperature is under 0.45MPa around 110℃

1.0 kg

Specifications

Polymaker PC-ABS

MEchanical Properties

(XY)Young's Modulus (MPa):
1835.5 ± 65.5 MPa
ISO 527, GB/T 1040
(Z)Young's Modulus (MPa):
1677 ± 94 MPa
ISO 527, GB/T 1040
(XY)Tensile Strength:
39.9 ± 1.0 MPa
ISO 527, GB/T 1040
(Z)Tensile Strength:
22.9 ± 1.2 MPa
ISO 527, GB/T 1040
(XY)Elongation at break(%):
4.2 ± 0.3 %
ISO 527, GB/T 1040
(Z)Elongation at break(%)
1.5 ± 0.1 %
ISO 527, GB/T 1040
(XY)Bending Modulus (MPa):
2081.4 ± 106.5 MPa
ISO 178, GB/T 9341
(XY)Bending Strength (MPa):
66.3 ± 0.9 MPa
ISO 178, GB/T 9341
(XY)Charpy Impact Strength:
25.8 ± 1.3 kJ/m
ISO 179, GB/T 1043
(XY)Charpy Impact Strength
Low Temperature (-30°C):
13 ± 2 kJ/m2
ISO 179-1/1eA:2010, -30°C

Thermal Properties

Glass Transition Temperature:
109.1 °C
DSC, 10°C/min
Melting Temperature:
109.1 °C
DSC, 10°C/min
Heat Deflection Temperature
(1.8MPa):
106.4 °C
ISO 75 1.8MPa
Heat Deflection Temperature
(0.45MPa)
111.7 °C
ISO 75 0.45MPa
Vicat Softening Temperature:
135.1 °C
ISO 306, GB/T 1633

Material Properties

SKU List

Close

* Please note that availability of certain SKUs may vary by location and not all products may be accessible at every reseller. We recommend contacting your local reseller for specific product availability in your region. You can also contact our regional sales team for more details.

Color Range

Color Range

Diameter

Diameter

Weight

Weight
  • SKU
    EAN/ UPC
    Product Name
    Diameter
    Color Range
    Color Name
    HEX
    Weight
    Product Code Description
    • PC04001
      6938936710899
      Polymaker PC-ABS
      1.75mm
      Regular
      Black
      Not Yet
      1.0kg
      Polymaker PC-ABS/1.75mm/Regular/Black/1.00kg
