PolySonic™ PLA

PolySonic™ PLA is a revolutionary high-speed 3D printing filament, the ultimate game-changer in additive manufacturing. With its lightning-fast extrusion rate, cutting-edge precision, and exceptional layer adhesion you can ramp up the speed of your 3D printer and witness new levels of productivity. Accelerate your workflow without compromising on strength or quality.

High-Speed
Consistent Extrusion
Easy to Print

Color Range

Regular

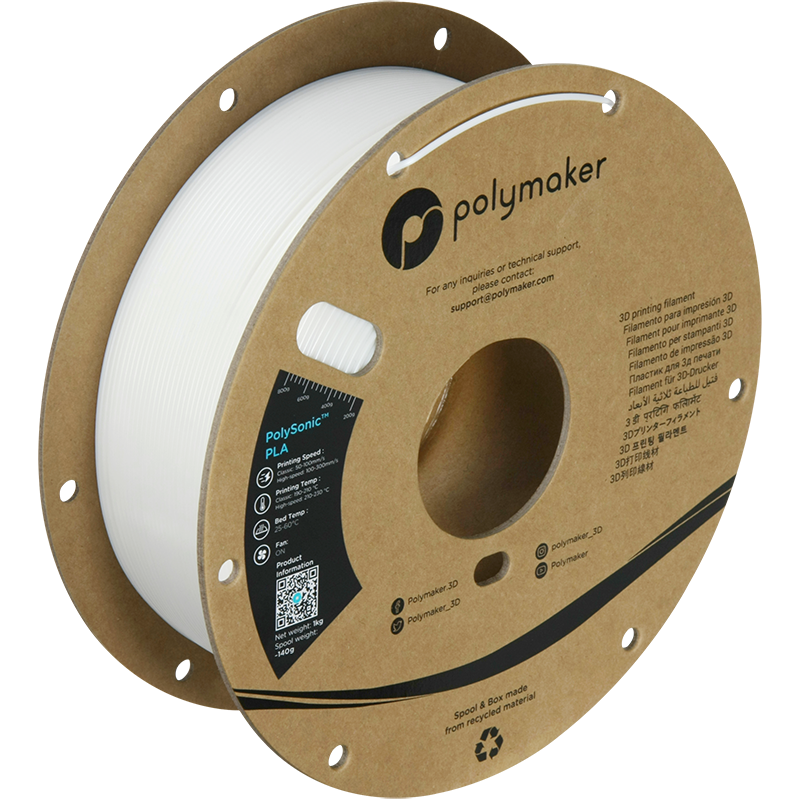

SKU
PA12001
EAN
6938936713951
Color
White
Diameter
1.75mm
Weight
1kg

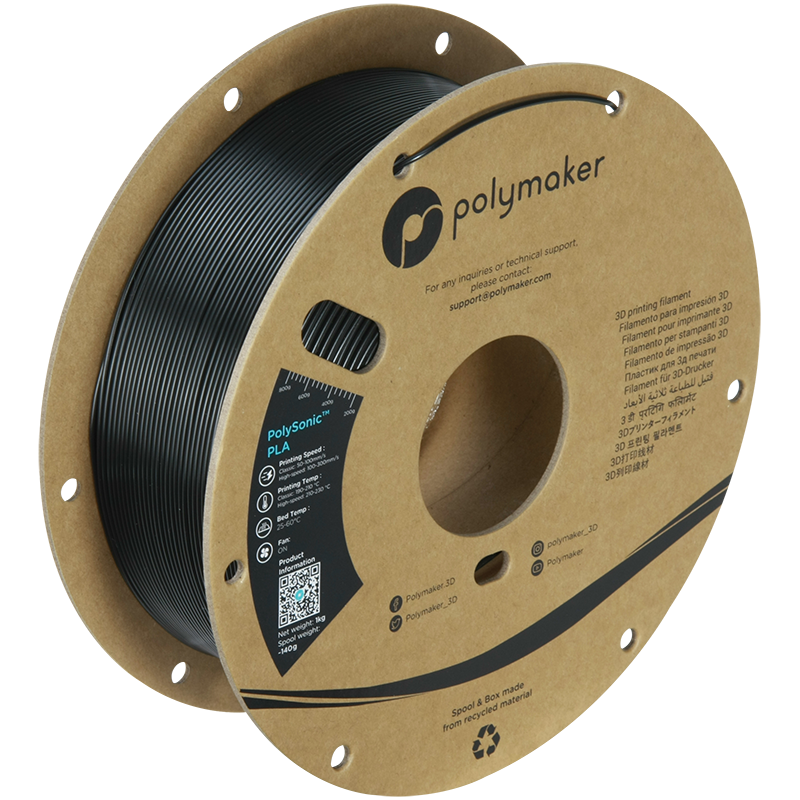

SKU
PA12002
EAN
6938936713968
Color
Black
Diameter
1.75mm
Weight
1kg
SKU
PA12003
EAN
6938936713975
Color
Grey
Diameter
1.75mm
Weight
1kg

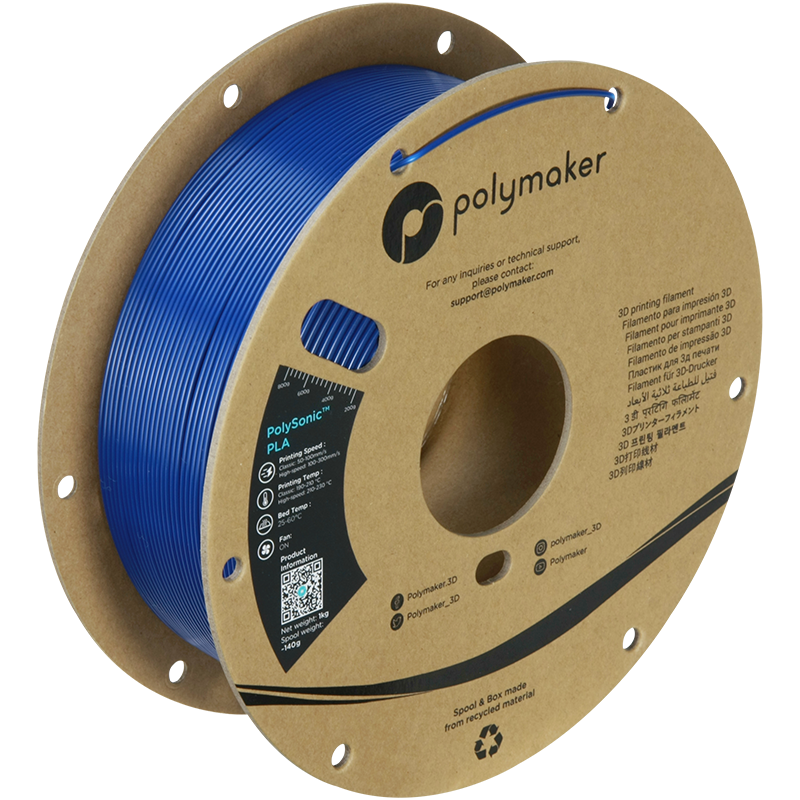

SKU
PA12004
EAN
6938936713982
Color
Blue
Diameter
1.75mm
Weight
1kg

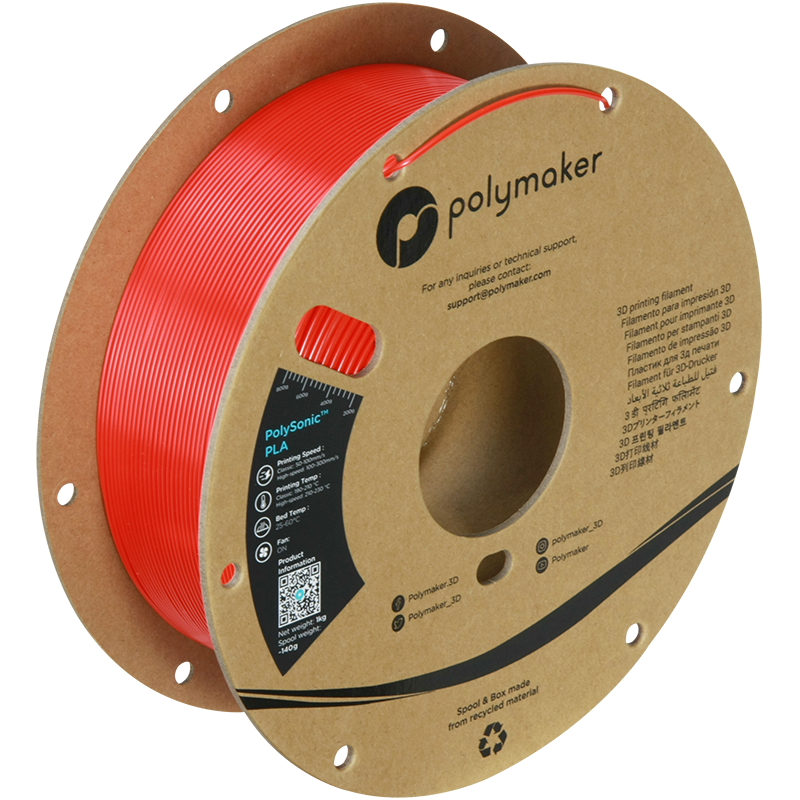

SKU
PA12005
EAN
6938936713999
Color
Red
Diameter
1.75mm
Weight
1kg
SKU
PA12006
EAN
6938936714279
Color
Yellow
Diameter
1.75mm
Weight
1kg
SKU
PA12007
EAN
6938936714286
Color
Orange
Diameter
1.75mm
Weight
1kg
SKU
PA12008
EAN
6938936714293
Color
Purple
Diameter
1.75mm
Weight
1kg
SKU
PA12009
EAN
6938936714347
Color
Polymaker Teal
Diameter
1.75mm
Weight
1kg
SKU
PA12010
EAN
6938936714354
Color
Green
Diameter
1.75mm
Weight
1kg
Product Information Sheet
Technical Data Sheet

Product Video

FAQ

What are the advantages of using a High Speed filament?

1) Surface Quality at high speed:

When printing at high speed, the nozzle will actually experience a wide variety of speed going from 0mm/s to the max speed set on the slicer. The higher the max speed, the wider the range of different speeds. The issue is with the printing temperature being the same, the extrusion temperature will vary dramatically leaving difference surface finishes on the print (from glossy to matte because of a phenomenon called: Shark Skin), High Speed filament reduces these differences by displaying similar surface finish in a wide range of flow rates.
Additionally, high speed filament will extrude much more consistently within the speed range providing a smooth surface whereas regular filament will display holes, artifacts and layers with different thicknesses.

2) Mechanical Properties at high speed:

High Speed filament will display far greater overall mechanical properties when printed at higher speed than regular filament because of the more consistent extrusion and the optimized cooling/melting rate of the polymer.

3) Higher Throughput:

Thanks to 1) and 2), you are able to output the same quality part at a much higher pace from your 3D printer. This advantage is ideal for businesses using 3D printing to produce their products.

What is a High Speed filament?

A material is considered "High Speed" if it fulfills the following 3 criteria at a set printing temperature:

1) Flowability: It can extrude consistently at 24mm3/s on popular extrusion system. (equivalent to 300mm/s at 0.2mm layer height with a 0.4mm nozzle)

2) Formability: At 24mm3/s, it maintains similar surface quality, overhang and bridging as printed at lower speed.

3) Functionality: At 24mm3/s, it maintains at least 80% of its overall mechanical properties when printing at lower speed. (mainly: layer adhesion, tensile strength and impact strength)

PolySonic™ PLA at 230˚C
1) Maximum flow*: 30mm3/s** (tested on a customized extrusion platform equipped with an E3D volcano hotend, 0.4mm nozzle with Hemera XS extruder)

2) Confirmed similar quality Polymaker Scientist when printed at 4mm3/s and 24mm3/s

3) Layer Adhesion at 4mm3/s-24mm3/s: 37.3-32.3 MPa (Maintain 87%)
Tensile Strength at 4mm3/s-24mm3/s: 46.0-43.9 (Maintain 95%)
Impact strength at 4mm3/s-24mm3/s: 6.1-5 kJ/m2 (Maintain 82%)

* Maximum Flow: Flow at which the measured flow is decreasing below 95% of the requested flow.
**
For 0.2mm layer height with 0.4mm nozzle: 29mm3/s -> 363mm/s
For 0.1mm layer height with 0.4mm nozzle: 29mm3/s -> 725mm/s

What is dimensional tolerance of filament?

Here is the accuracy of this filament:
97% is within +/- 0.02
99% is within +/- 0.03
99.9% is within +/- 0.04

1.0 kg

Specifications

PolySonic™ PLA

MEchanical Properties

(Classic Speed)

(XY)Young's Modulus (MPa):
2878.3 ± 74.3 MPa
ISO 527, GB/T 1040
(Z)Young's Modulus (MPa):
2689.8 ± 92.0 MPa
ISO 527, GB/T 1040
(XY)Tensile Strength:
46.0 ± 0.5 MPa
ISO 527, GB/T 1040
(Z)Tensile Strength:
37.3 ± 0.7 MPa
ISO 527, GB/T 1040
(XY)Elongation at break(%):
21.5 ± 5.02 %
ISO 527, GB/T 1040
(Z)Elongation at break(%)
4.2 ± 2.0 %
ISO 527, GB/T 1040
(XY)Bending Modulus (MPa):
2868.2 ± 78.4 MPa
ISO 178, GB/T 9341
(XY)Bending Strength (MPa):
76.5 ± 0.9 MPa
ISO 178, GB/T 9341
(XY)Charpy Impact Strength:
6.1 ± 0.6 kJ/m2
ISO 179, GB/T 1043
* Based on 0.4 mm nozzle and 0.2mm layer thickness. Classic printing speed = 46.7mm/s, printing temperature = 210 °C. High printing speed = 300mm/s, printing temperature = 230 °C

MEchanical Properties

(HIGH Speed)

(XY)Young's Modulus (MPa):
2649.7 ± 78.3 MPa
ISO 527, GB/T 1040
(Z)Young's Modulus (MPa):
2210.4 ± 79.4 MPa
ISO 527, GB/T 1040
(XY)Tensile Strength:
43.9 ± 0.4 MPa
ISO 527, GB/T 1040
(Z)Tensile Strength:
30.4 ± 0.4 MPa
ISO 527, GB/T 1040
(XY)Elongation at break(%):
15.1 ± ±.9 %
ISO 527, GB/T 1040
(Z)Elongation at break(%)
3.3 ± 0.5 %
ISO 527, GB/T 1040
(XY)Bending Modulus (MPa):
2797.9 ± 40.7 MPa
ISO 178, GB/T 9341
(XY)Bending Strength (MPa):
71.4 ± 0.6 MPa
ISO 178, GB/T 9341
(XY)Charpy Impact Strength:
5.0 ± 0.5 kJ/m2
ISO 179, GB/T 1043
* Based on 0.4 mm nozzle and 0.2mm layer thickness. Classic printing speed = 46.7mm/s, printing temperature = 210 °C. High printing speed = 300mm/s, printing temperature = 230 °C

Material Properties

Product Description

SKU List

Close

* Please note that availability of certain SKUs may vary by location and not all products may be accessible at every reseller. We recommend contacting your local reseller for specific product availability in your region. You can also contact our regional sales team for more details.

Color Range

Color Range

Diameter

Diameter

Weight

Weight
  • SKU
    EAN/ UPC
    Product Name
    Diameter
    Color Range
    Color Name
    HEX
    Weight
    Product Code Description
    • PA12001
      6938936713951
      PolySonic™ PLA
      1.75mm
      Regular
      White
      #E2DEDB
      1kg
      PolySonic™ PLA/ 1.75mm/ Regular/
       White
      1kg
    • PA12002
      6938936713968
      PolySonic™ PLA
      1.75mm
      Regular
      Black
      #0C0E0C
      1kg
      PolySonic™ PLA/ 1.75mm/ Regular/
       Black
      1kg
    • PA12003
      6938936713975
      PolySonic™ PLA
      1.75mm
      Regular
      Grey
      #73767D
      1kg
      PolySonic™ PLA/ 1.75mm/ Regular/
       Grey
      1kg
    • PA12004
      6938936713982
      PolySonic™ PLA
      1.75mm
      Regular
      Blue
      #00307E
      1kg
      PolySonic™ PLA/ 1.75mm/ Regular/
       Blue
      1kg
    • PA12005
      6938936713999
      PolySonic™ PLA
      1.75mm
      Regular
      Red
      #E62216
      1kg
      PolySonic™ PLA/ 1.75mm/ Regular/
       Red
      1kg
    • PA12006
      6938936714279
      PolySonic™ PLA
      1.75mm
      Regular
      Yellow
      #F4C032
      1kg
      PolySonic™ PLA/ 1.75mm/ Regular/
       Yellow
      1kg
    • PA12007
      6938936714286
      PolySonic™ PLA
      1.75mm
      Regular
      Orange
      #F97429
      1kg
      PolySonic™ PLA/ 1.75mm/ Regular/
       Orange
      1kg
    • PA12008
      6938936714293
      PolySonic™ PLA
      1.75mm
      Regular
      Purple
      #6C5BB1
      1kg
      PolySonic™ PLA/ 1.75mm/ Regular/
       Purple
      1kg
    • PA12009
      6938936714347
      PolySonic™ PLA
      1.75mm
      Regular
      Polymaker Teal
      #50DAE4
      1kg
      PolySonic™ PLA/ 1.75mm/ Regular/
       Polymaker Teal
      1kg
    • PA12010
      6938936714354
      PolySonic™ PLA
      1.75mm
      Regular
      Green
      #2D9E59
      1kg
      PolySonic™ PLA/ 1.75mm/ Regular/
       Green
      1kg
