PolyFlex™ Series

PolyFlex™ TPU90

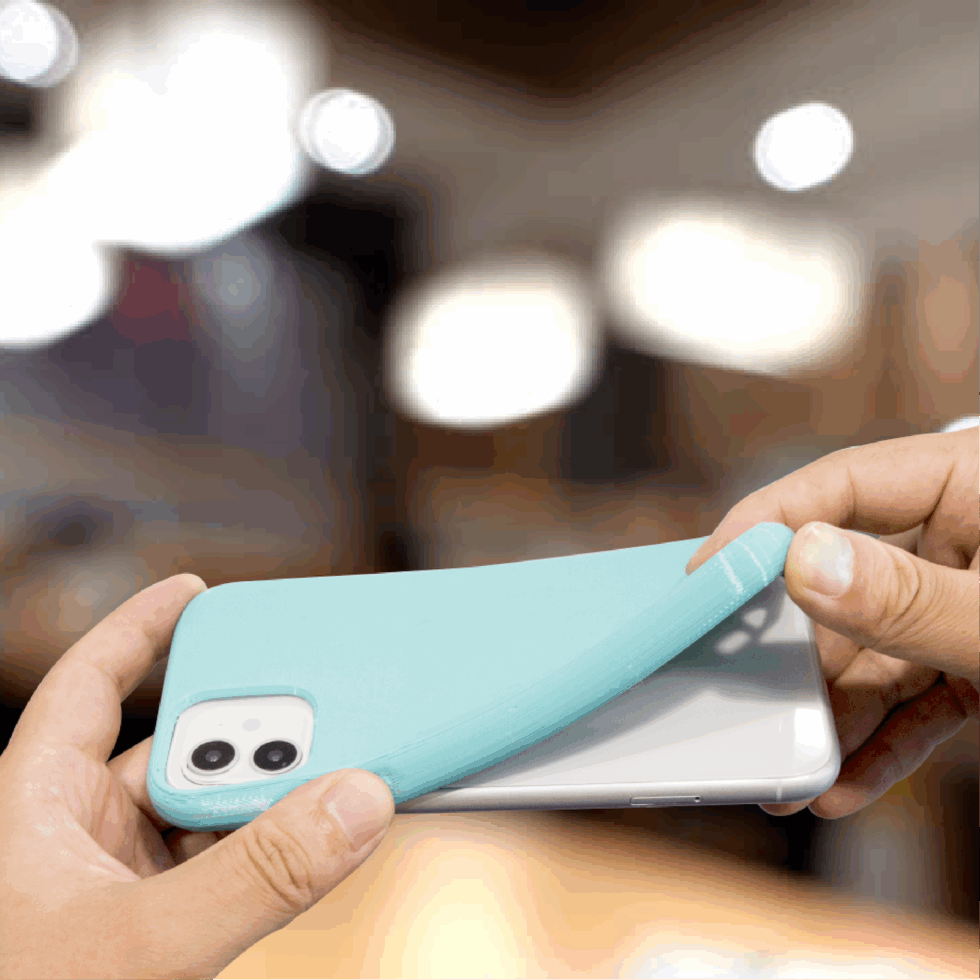

PolyFlex™ TPU90, created from Covestro’s Addigy® TPU family offers the highest degree of flexability in the PolyFlex™ family. With a shore hardness of 90A and an elongation to break of 585% this flexible filament is extremely soft while still being printable. TPU90 is certified with ISO10993 allowing it to be used for medical and skin contact devices.

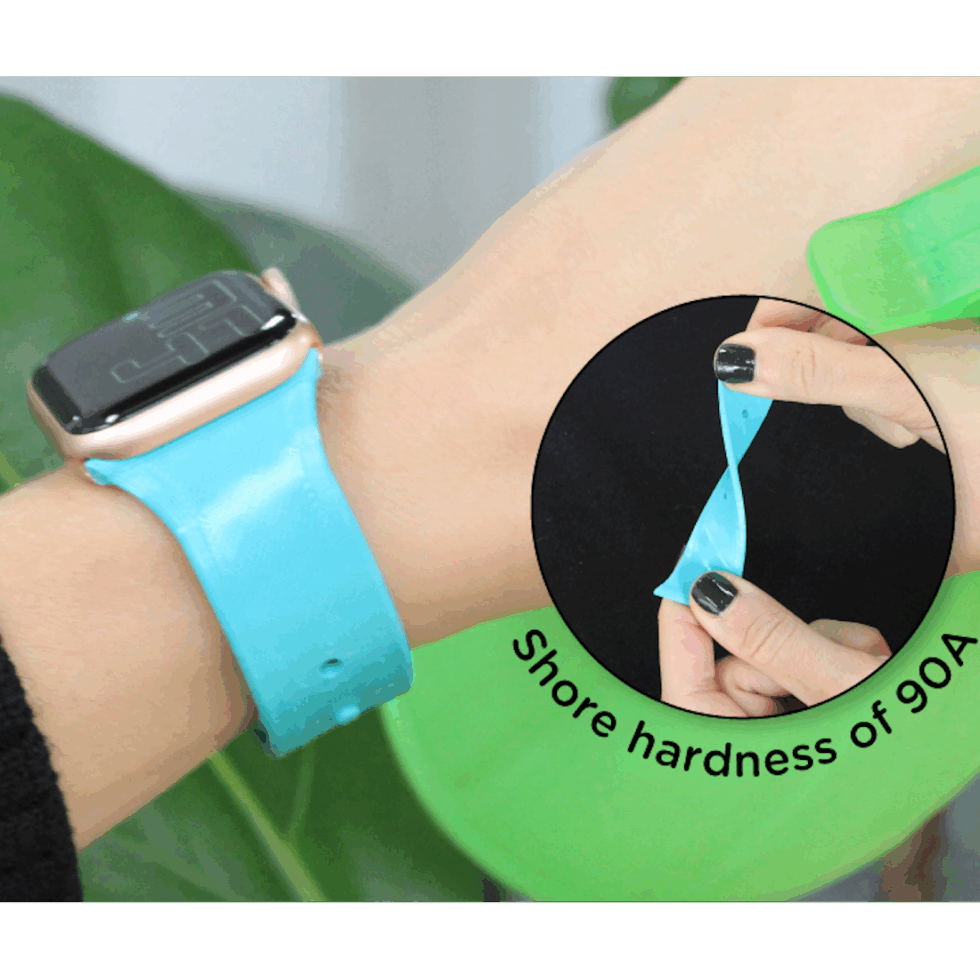

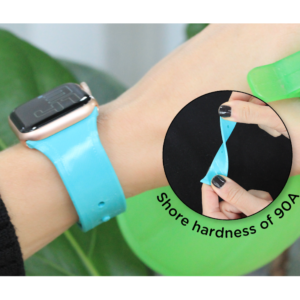

Flexible with shore 90A

Good printability

UV resistant

Find a Reseller

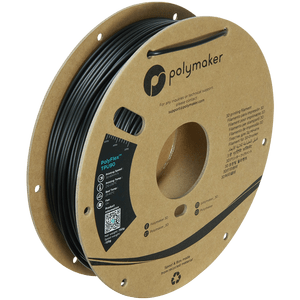

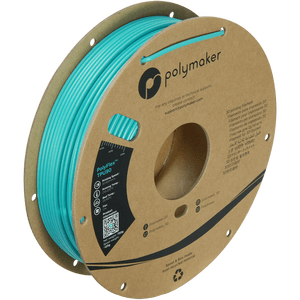

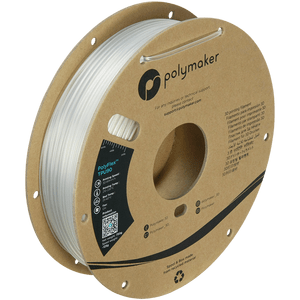

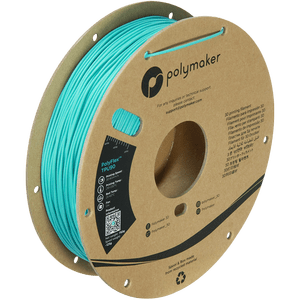

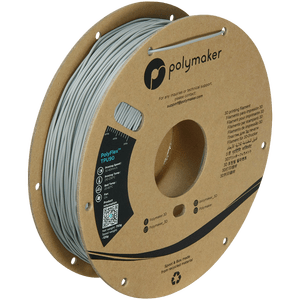

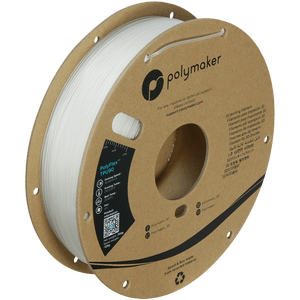

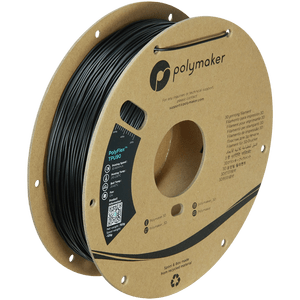

Color Range

Regular

Inquiry

Product Availability

Product Information Sheet

Safety Data Sheet

Technical Data Sheet

FAQ

Do you have any suggestions when printing TPU90 with support structure on single extruder printer?

Generally, when printing with TPU materials, if support structures are needed, we recommend using specialized support materials such as PolyDissolve™ S1. However, considering the single extruder devices that users may have, we suggest customers adjust the orientation of the model to minimize the use of support structures, or place support structures in inconspicuous areas that won't affect the appearance.

Can my printer print PolyFlex™ TPU90?

We highly recommend to use a direct drive printer to print PolyFlex™ TPU90. A direct drive printer is a printer with the extruder mounted on top of the hot end.

What makes PolyFlex™ TPU90 unique?

PolyFlex™ TPU90 is easier to print than similar flexible material thank to its high melt index.

750g

Specifications

PolyFlex™ TPU90

print
settings

Printing Temperature:

210˚C - 230˚C

Bed Temperature:

25˚C - 60˚C

Printing Speed:

30mm/s -60mm/s

Fan:

Direct Drive Retraction Distance:

3mm

Direct Drive Retraction Speed:

40mm/s

Indirect Drive Retraction Distance:

6mm

Indirect Drive Retraction Speed:

60mm

Annealing:

N/A

Recommended Support Materials:

PolySupport™ and PolyDissolve™ S1

Dry Settings:

70˚C for 8h

(Only if the material has absorbed moisture)

MEchanical Properties

(XY) 100% Modulus

6.17 ± 0.19 MPa

ISO 37, GB/T 528

(XY)Tensile Strength:

30.0 ± 0.66 MPa

ISO 37, GB/T 528

(XY)Elongation at break:

586.8 ± 15.3 %

ISO 37, GB/T 528

Shore Hardness:

90A

ISO 7619-1, GB/T 531.1
