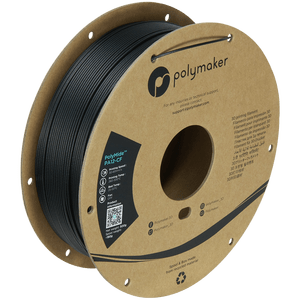

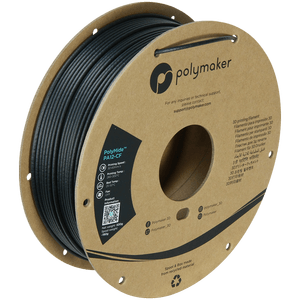

PolyMide™ PA12-CF

PolyMide™ PA12-CF is a carbon fiber reinforced Nylon 12 filament. The main advantage of Nylon 12 over Nylon 6 filaments is its low moisture sensitivity. This improves the handling, storing and printing capabilities while still offering superior mechanical properties compared to other filaments.

Low moisture sensitivity
Excellent surface finish
Excellent dimension stability during printing

Color Range

Regular
SKU
PG04001
EAN
6938936711599
Color
Black
Diameter
1.75mm
Weight
0.5kg
SKU
PG04002
EAN
6938936711605
Color
Black
Diameter
2.85mm
Weight
0.5kg
Product Information Sheet
Technical Data Sheet

Product Video

Related Videos

FAQ

How can we compare the moisture absorption resistance among various nylon-CF products?

PolyMide™ PA12-CF > PolyMide™ PA612-CF > PolyMide™ PA6-CF

500g

Specifications

PolyMide™ PA12-CF

MEchanical Properties

(XY)Young's Modulus (MPa):
3304.3 ± 145.0 MPa
ISO 527, GB/T 1040
(Z)Young's Modulus (MPa):
1801.09 ± 80.0 MPa
ISO 527, GB/T 1040
(XY)Tensile Strength:
71.6 ± 1.7 MPa
ISO 527, GB/T 1040
(Z)Tensile Strength:
43.3 ± 3.3 MPa
ISO 527, GB/T 1040
(XY)Elongation at break(%):
3.5 ± 0.3 %
ISO 527, GB/T 1040
(Z)Elongation at break(%)
3.29 ± 0.5%
ISO 527, GB/T 1040
(XY)Bending Modulus (MPa):
3535.4 ± 239.4 MPa
ISO 178, GB/T 9341
(XY)Bending Strength (MPa):
109.9 ± 1.4 MPa
ISO 178, GB/T 9341
(XY)Charpy Impact Strength:
12.5 ± 0.7 kJ/m2
ISO 179, GB/T 1043

Thermal Properties

Glass Transition Temperature:
54.7°C
DSC, 10°C/min
Melting Temperature:
54.7°C
DSC, 10°C/min
Heat Deflection Temperature
(1.8MPa):
105.2°C
ISO 75 1.8MPa
Heat Deflection Temperature
(0.45MPa)
131.1°C
ISO 75 0.45MPa

Material Properties

Technology

Warp-Free technology

Fiber adhesion technology

SKU List

Close

* Please note that availability of certain SKUs may vary by location and not all products may be accessible at every reseller. We recommend contacting your local reseller for specific product availability in your region. You can also contact our regional sales team for more details.

Color Range

Color Range

Diameter

Diameter

Weight

Weight
  • SKU
    EAN/ UPC
    Product Name
    Diameter
    Color Range
    Color Name
    HEX
    Weight
    Product Code Description
    • PG04001
      6938936711599
      PolyMide™ PA12-CF
      1.75mm
      Regular
      Black
      Not Yet
      0.5kg
      PolyMide™ PA12-CF/ 1.75mm/ Regular/
       Black/
      0.5kg
    • PG04002
      6938936711605
      PolyMide™ PA12-CF
      2.85mm
      Regular
      Black
      Not Yet
      0.5kg
      PolyMide™ PA12-CF/ 2.85mm/ Regular/
       Black/
      0.5kg
