PolySonic™ PLA Pro

PolySonic™ PLA Pro is a tough PLA that can print at incredible speeds. With its advanced formulation, this filament ensures durable, rugged prints, with an impact strength similar to ABS and bending strength outperforming ASA & PETG. When time is of the essence for functional parts, PLA Pro is the ideal choice for you.

High-Speed
Consistent Extrusion
Excellent Toughness

Color Range

Regular
New
SKU
PA13001
EAN
6938936714002
Color

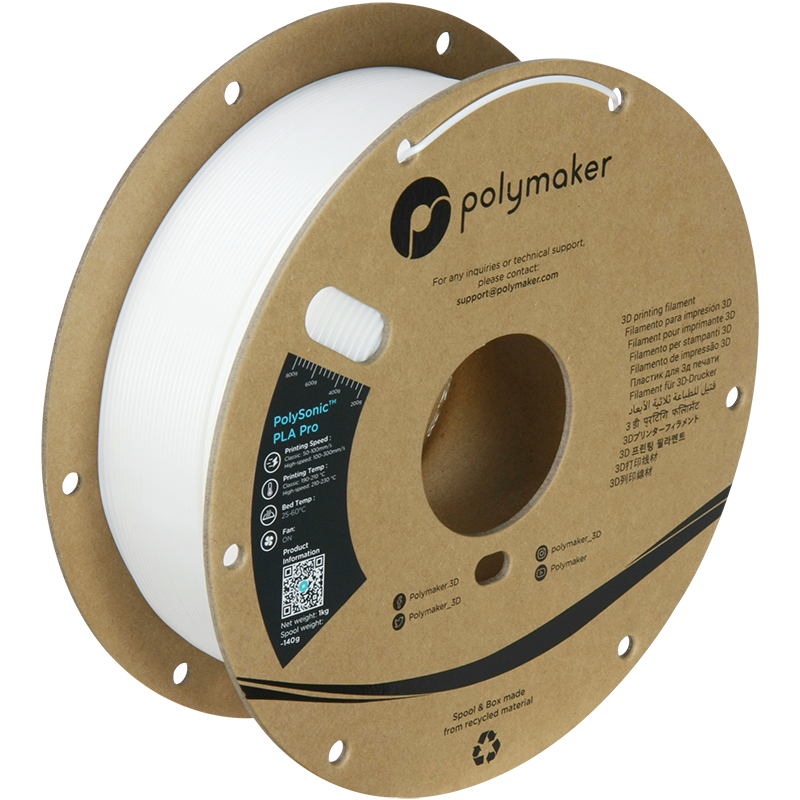

White
Diameter
1.75mm
Weight
1.0kg
New
SKU
PA13002
EAN
6938936714019
Color

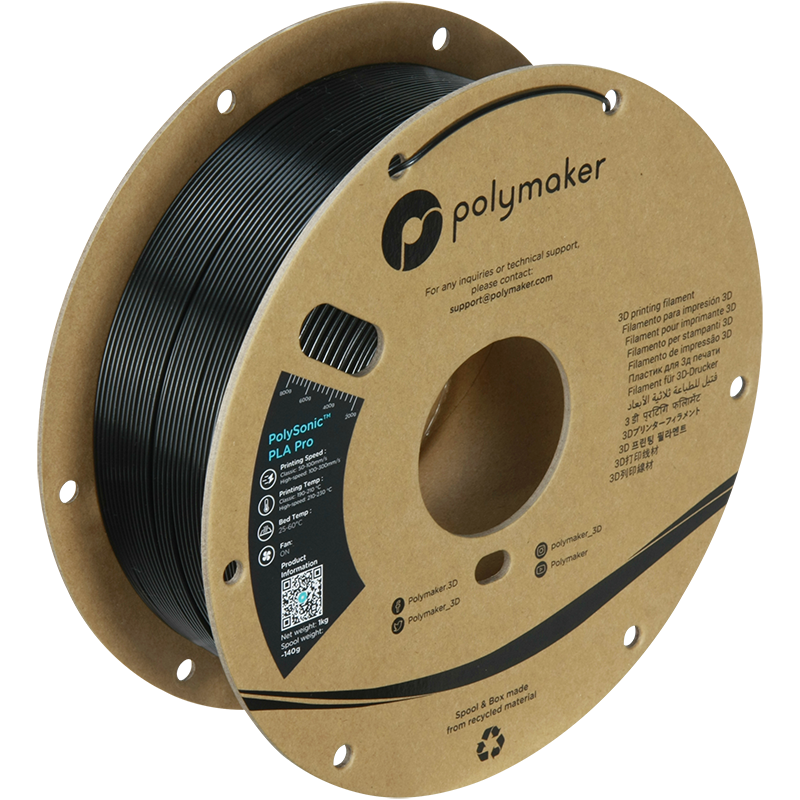

Black
Diameter
1.75mm
Weight
1.0kg
Product Information Sheet
Technical Data Sheet

FAQ

What are the advantages of using a High Speed filament?

1) Surface Quality at high speed:

When printing at high speed, the nozzle will actually experience a wide variety of speed going from 0mm/s to the max speed set on the slicer. The higher the max speed, the wider the range of different speeds. The issue is with the printing temperature being the same, the extrusion temperature will vary dramatically leaving difference surface finishes on the print (from glossy to matte because of a phenomenon called: Shark Skin), High Speed filament reduces these differences by displaying similar surface finish in a wide range of flow rates.
Additionally, high speed filament will extrude much more consistently within the speed range providing a smooth surface whereas regular filament will display holes, artifacts and layers with different thicknesses.

2) Mechanical Properties at high speed:

High Speed filament will display far greater overall mechanical properties when printed at higher speed than regular filament because of the more consistent extrusion and the optimized cooling/melting rate of the polymer.

3) Higher Throughput:

Thanks to 1) and 2), you are able to output the same quality part at a much higher pace from your 3D printer. This advantage is ideal for businesses using 3D printing to produce their products.

What is a High Speed filament?

A material is considered "High Speed" if it fulfills the following 3 criteria at a set printing temperature:

1) Flowability: It can extrude consistently at 24mm3/s on popular extrusion system. (equivalent to 300mm/s at 0.2mm layer height with a 0.4mm nozzle)

2) Formability: At 24mm3/s, it maintains similar surface quality, overhang and bridging as printed at lower speed.

3) Functionality: At 24mm3/s, it maintains at least 80% of its overall mechanical properties when printing at lower speed. (mainly: layer adhesion, tensile strength and impact strength)

PolySonic™ PLA at 230˚C
1) Maximum flow*: 30mm3/s** (tested on a customized extrusion platform equipped with an E3D volcano hotend, 0.4mm nozzle with Hemera XS extruder)

2) Confirmed similar quality Polymaker Scientist when printed at 4mm3/s and 24mm3/s

3) Layer Adhesion at 4mm3/s-24mm3/s: 37.3-32.3 MPa (Maintain 87%)
Tensile Strength at 4mm3/s-24mm3/s: 46.0-43.9 (Maintain 95%)
Impact strength at 4mm3/s-24mm3/s: 6.1-5 kJ/m2 (Maintain 82%)

* Maximum Flow: Flow at which the measured flow is decreasing below 95% of the requested flow.
**
For 0.2mm layer height with 0.4mm nozzle: 29mm3/s -> 363mm/s
For 0.1mm layer height with 0.4mm nozzle: 29mm3/s -> 725mm/s

What is dimensional tolerance of filament?

Here is the accuracy of this filament:
97% is within +/- 0.02
99% is within +/- 0.03
99.9% is within +/- 0.04

1.0 kg

Specifications

PolySonic™ PLA Pro

MEchanical Properties

(Classic Speed)

(XY)Young's Modulus (MPa):
2360.0 ± 30.1 MPa
ISO 527, GB/T 1040
(Z)Young's Modulus (MPa):
2283.3 ± 32.1 MPa
ISO 527, GB/T 1040
(XY)Tensile Strength:
41.2 ± 0.6 MPa
ISO 527, GB/T 1040
(Z)Tensile Strength:
33.6 ± 0.5 MPa
ISO 527, GB/T 1040
(XY)Elongation at break(%):
23.4 ± 6.3 %
ISO 527, GB/T 1040
(Z)Elongation at break(%)
4.9 ± 1.1 %
ISO 527, GB/T 1040
(XY)Bending Modulus (MPa):
2688.7 ± 26.1 MPa
ISO 178, GB/T 9341
(XY)Bending Strength (MPa):
67.5 ± 0.7 MPa
ISO 178, GB/T 9341
(XY)Charpy Impact Strength:
22.7 ± 2.5 kJ/m2
ISO 179, GB/T 1043
* Based on 0.4 mm nozzle and 0.2mm layer thickness. Classic printing speed = 46.7mm/s, printing temperature = 210 °C. High printing speed = 300mm/s, printing temperature = 230 °C

MEchanical Properties

(HIGH Speed)

(XY)Young's Modulus (MPa):
2305.7 ± 42.9 MPa
ISO 527, GB/T 1040
(Z)Young's Modulus (MPa):
2102.9 ± 74.3 MPa
ISO 527, GB/T 1040
(XY)Tensile Strength:
39.3 ± 0.5 MPa
ISO 527, GB/T 1040
(Z)Tensile Strength:
31.92 ± 0.5 MPa
ISO 527, GB/T 1040
(XY)Elongation at break(%):
17.98 ± 5.2 %
ISO 527, GB/T 1040
(Z)Elongation at break(%)
3.8 ± 0.2 %
ISO 527, GB/T 1040
(XY)Bending Modulus (MPa):
2544.5 ± 27.0 MPa
ISO 178, GB/T 9341
(XY)Bending Strength (MPa):
64.1 ± 0.6 MPa
ISO 178, GB/T 9341
(XY)Charpy Impact Strength:
19.4 ± 3.4 kJ/m2
ISO 179, GB/T 1043
* Based on 0.4 mm nozzle and 0.2mm layer thickness. Classic printing speed = 46.7mm/s, printing temperature = 210 °C. High printing speed = 300mm/s, printing temperature = 230 °C

Material Properties

SKU List

Close

* Please note that availability of certain SKUs may vary by location and not all products may be accessible at every reseller. We recommend contacting your local reseller for specific product availability in your region. You can also contact our regional sales team for more details.

Color Range

Color Range

Diameter

Diameter

Weight

Weight
  • SKU
    EAN/ UPC
    Product Name
    Diameter
    Color Range
    Color Name
    HEX
    Weight
    Product Code Description
    • PA13001
      new!
      6938936714002
      PolySonic™ PLA Pro
      1.75mm
      Regular
      White
      #E2DEDB
      1.0kg
      PolySonic PLA Pro/2.85mm/Regular/White/1kg
    • PA13002
      new!
      6938936714019
      PolySonic™ PLA Pro
      1.75mm
      Regular
      Black
      #0C0E0C
      1.0kg
      PolySonic™ PLA Pro/1.75mm/Regular/Black/1kg
