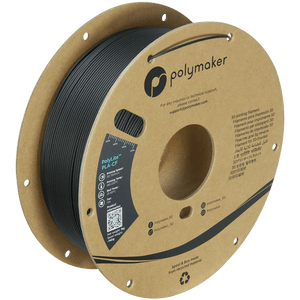

PolyLite™ PLA-CF

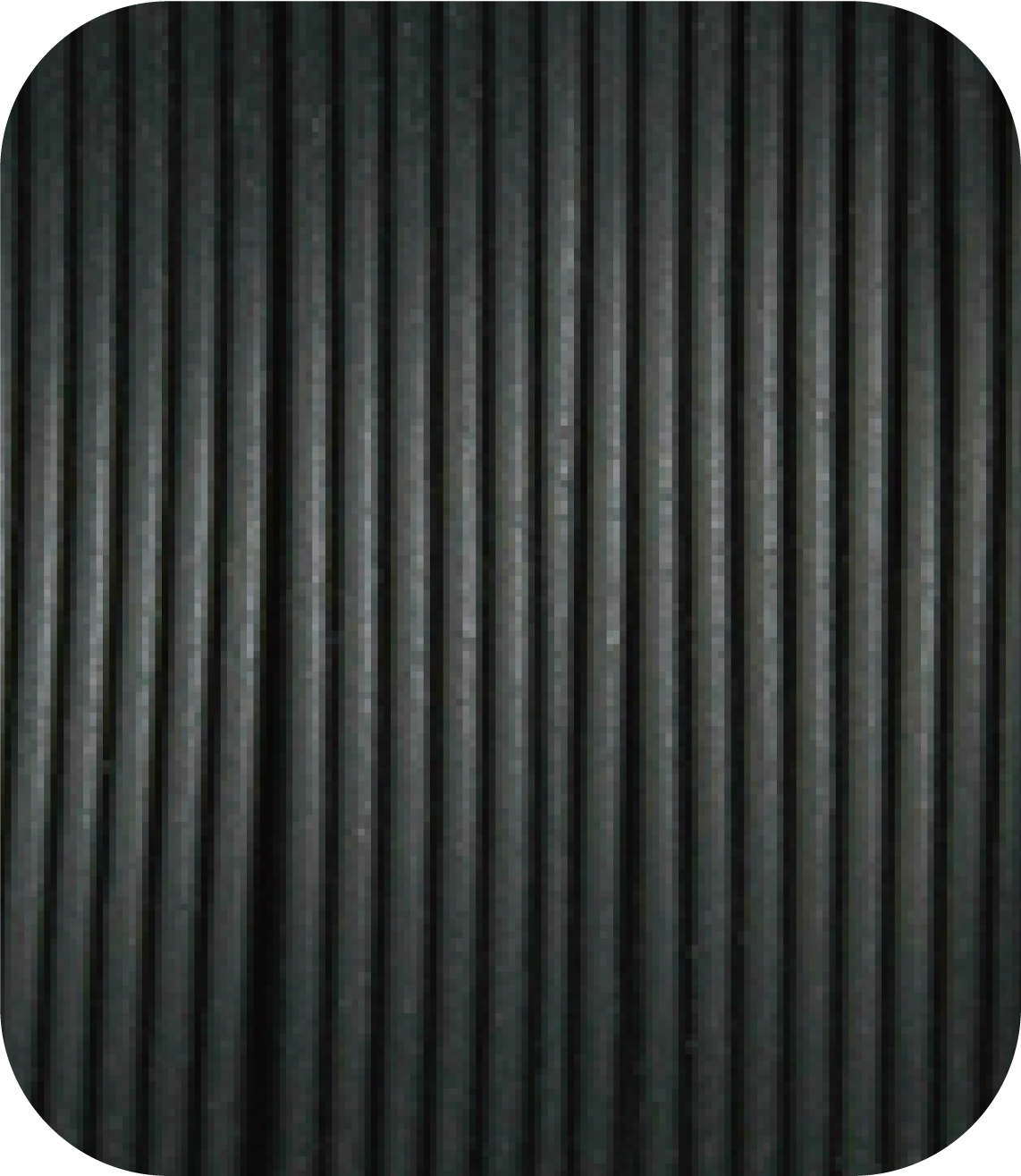

PolyLite™ PLA-CF is a PLA filament that’s reinforced with 8% milled carbon fibers. This not only boosts the rigidity of the filament, but it also produces parts with a beautiful carbon black surface finish. The carbon fibers help reduce shrinkage during printing, producing extremely dimensionally accurate 3D printed parts with a unique surface finish.

Excellent rigidity
Prints reliably
From renewable sources

Color Range

Regular
SKU
PA10001
EAN
6938936710264
Color
Black
Diameter
1.75mm
Weight
1kg
Product Information Sheet
Safety Data Sheet
Technical Data Sheet

FAQ

Can my printer print PolyLite™ PLA-CF

Your printer will need to be equipped with a hardened nozzle in order to print PolyLite™ PLA-CF.

How much carbon fiber does PolyLite™ PLA-CF contain?

PolyLite™ PLA-CF contains 8% carbon fiber by weight.

1.0 kg

Specifications

PolyLite™ PLA-CF

MEchanical Properties

(XY)Young's Modulus (MPa):
3280.7 ± 79.6 MPa
ISO 527, GB/T 1040
(Z)Young's Modulus (MPa):
2213.1 ± 42.9 MPa
ISO 527, GB/T 1040
(XY)Tensile Strength:
31.2 ± 0.7 MPa
ISO 527, GB/T 1040
(Z)Tensile Strength:
15.1 ± 0.7 MPa
ISO 527, GB/T 1040
(XY)Elongation at break(%):
13.2 ± 1.7 %
ISO 527, GB/T 1040
(Z)Elongation at break(%)
0.9 ± 0.1 %
ISO 527, GB/T 1040
(XY)Bending Modulus (MPa):
3380.5 ± 52.1 MPa
ISO 178, GB/T 9341
(XY)Bending Strength (MPa):
51.7 ± 0.6 MPa
ISO 178, GB/T 9341
(XY)Charpy Impact Strength:
5.5 ± 0.2 kJ/m2
ISO 179, GB/T 1043

Thermal Properties

Glass Transition Temperature:
61.8 °C
DSC, 10°C/min
Melting Temperature:
61.8 °C
DSC, 10°C/min
Heat Deflection Temperature
(1.8MPa):
50.4 °C
ISO 75 1.8MPa
Heat Deflection Temperature
(0.45MPa)
54.0 °C
ISO 75 0.45MPa
Vicat Softening Temperature:
64.1 °C
ISO 306, GB/T 1633

Material Properties

Technology

Jam-Free™ technology

SKU List

Close

* Please note that availability of certain SKUs may vary by location and not all products may be accessible at every reseller. We recommend contacting your local reseller for specific product availability in your region. You can also contact our regional sales team for more details.

Color Range

Color Range

Diameter

Diameter

Weight

Weight
  • SKU
    EAN/ UPC
    Product Name
    Diameter
    Color Range
    Color Name
    HEX
    Weight
    Product Code Description
    • PA10001
      6938936710264
      PolyLite™ PLA-CF
      1.75mm
      Regular
      Black
      Not Yet
      1kg
      PolyLite™ PLA-CF/ 1.75mm/ Regular/
       Black/
      1kg
