View our material charts to find the suitable filament for your application.
For more detailed technical data visit our webapp：Full Technical Data Comparison

Dry state

Wet state

Printability

The printability of the material is defined by its ease of use and equipment required.

Rigidity

The rigidity of the material is defined by its modulus:Young’s modulus
ISO 527, GB/T 1040.

Heat Resistance

The heat resistance of the material is defined by its VST: Vicat Softening temperature
ISO 306 GB/T 1633.

Weather Resistance

The weather resistance of the material is defined by its UV resistance. The data provided is currently an estimation.

Durability

The durability of the material is defined by its resistance to impact:Charpy impact strength
ISO 179, GB/T 1043.A

*PolyMide™ PA6-CF and PolyMide™ PA6-GF heat resistance are defined by their HDT: Heat Deflection Temperature
ISO 75 0.45 MPa.

PolyMax™ Series

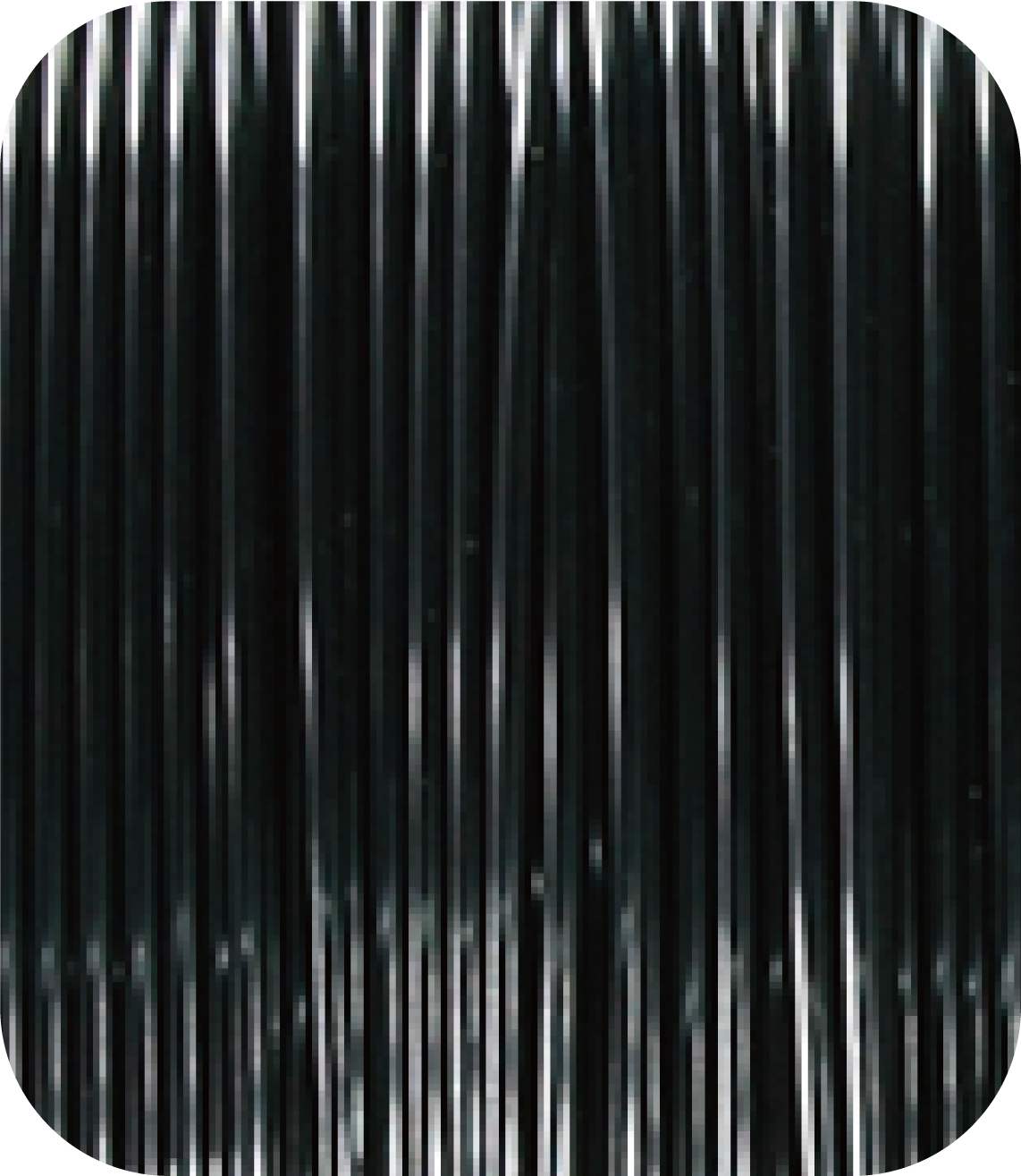

PolyMax™ PC

PolyMax™ PC is an engineering PC filament combining excellent strength, toughness, heat resistance and printing quality. It outperforms many other choices of PC while still printing at a relatively low printing temperature. With a softening point of 113°C it can operate in demanding environments where impact resistance, heat resistance and vibration resistance is required.

Extremely tough PC

Heat resistant

Good layer adhesion

Find a Reseller

Color Range

Regular

Inquiry

Product Availability

Product Information Sheet

Safety Data Sheet

Technical Data Sheet

Product Video

FAQ

What is the best surface adhesive for PolyMax™ PC?

In our experience we had excellent experience with Magigoo PC. This special glue allows great adhesion when the build plate is hot and easy release when the build plate cools down.

Does PolyMax™ PC need to be annealed?

Annealing is the process of heating up the printed parts at a certain temperature for a certain period of time. You can anneal PolyMax™ PC at 90_ for 2h.

The purpose of annealing PolyMax™ PC is to release the internal stress which accumulates during the printing process. This internal stress can creates micro cracks over time and weaken the part.

(NOTE: In the case of semi-crystalline polymers such as Nylon, annealing purpose is mainly to crystalize the material for better mechanical and thermal properties)

Is this impact resistant, like for rc car parts?

Yes, PolyMax™ PC is a toughness enhanced PC product, the charpy impact strength is 22KJ/_.

750g

3.0 kg

5.0 kg

Specifications

PolyMax™ PC

MEchanical Properties

(XY)Young's Modulus (MPa):

2435.5 ± 63.6 MPa

ISO 527, GB/T 1040

(Z)Young's Modulus (MPa):

2149.8 ± 119.9 MPa

ISO 527, GB/T 1040

(XY)Tensile Strength:

53.4 ± 0.6 MPa

ISO 527, GB/T 1040

(Z)Tensile Strength:

41.4 ± 1.5 MPa

ISO 527, GB/T 1040

(XY)Elongation at break(%):

4.5 ± 0.4 %

ISO 527, GB/T 1040

(Z)Elongation at break(%)

2.8 ± 0.2 %

ISO 527, GB/T 1040

(XY)Bending Modulus (MPa):

2050.1 ± 79.4 MPa

ISO 178, GB/T 9341

(XY)Bending Strength (MPa):

81.3 ± 1.5 MPa

ISO 178, GB/T 9341

(XY)Charpy Impact Strength:

21.3 ± 1.7 kJ/m2

ISO 179, GB/T 1043

Thermal Properties

Glass Transition Temperature:

113 °C

DSC, 10°C/min

Melting Temperature:

113 °C

DSC, 10°C/min

Heat Deflection Temperature
(1.8MPa):

99.3 °C

ISO 75 1.8MPa

Heat Deflection Temperature
(0.45MPa)

114.1 °C

ISO 75 0.45MPa

Vicat Softening Temperature:

116.9 °C

ISO 306, GB/T 1633

Material Properties

Technology

Nano reinforcement Technology

PolyMax™ PC
